Premium Electrical Connectors (set of 2)

Sold as set of 2 connectors.

Designed by rocketeers specifically for the demands of high powered rockets.

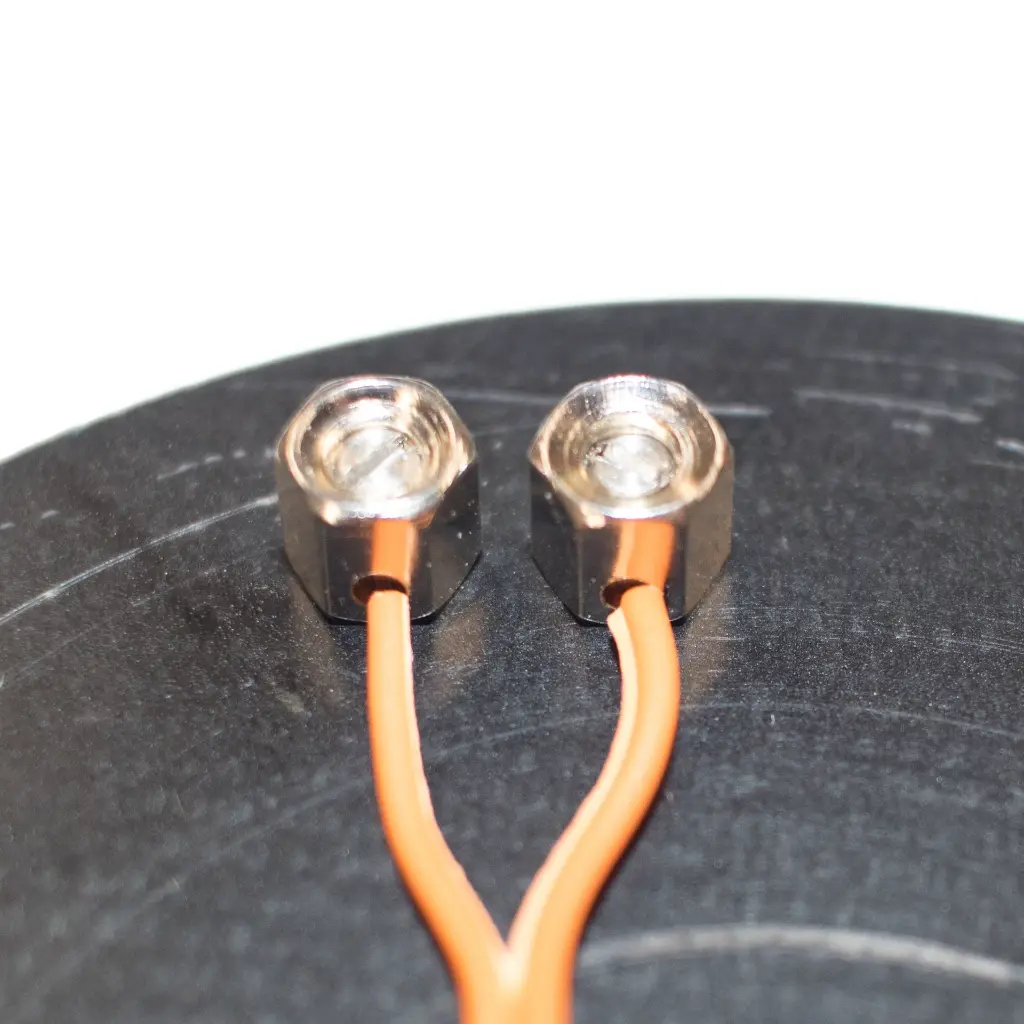

Compact design with secure wire capture, and low profile ejection side connector. Simply drill a 7/64 in hole in your bulkhead, and screw on the connector. Sturdy and removable to aid in cleaning.

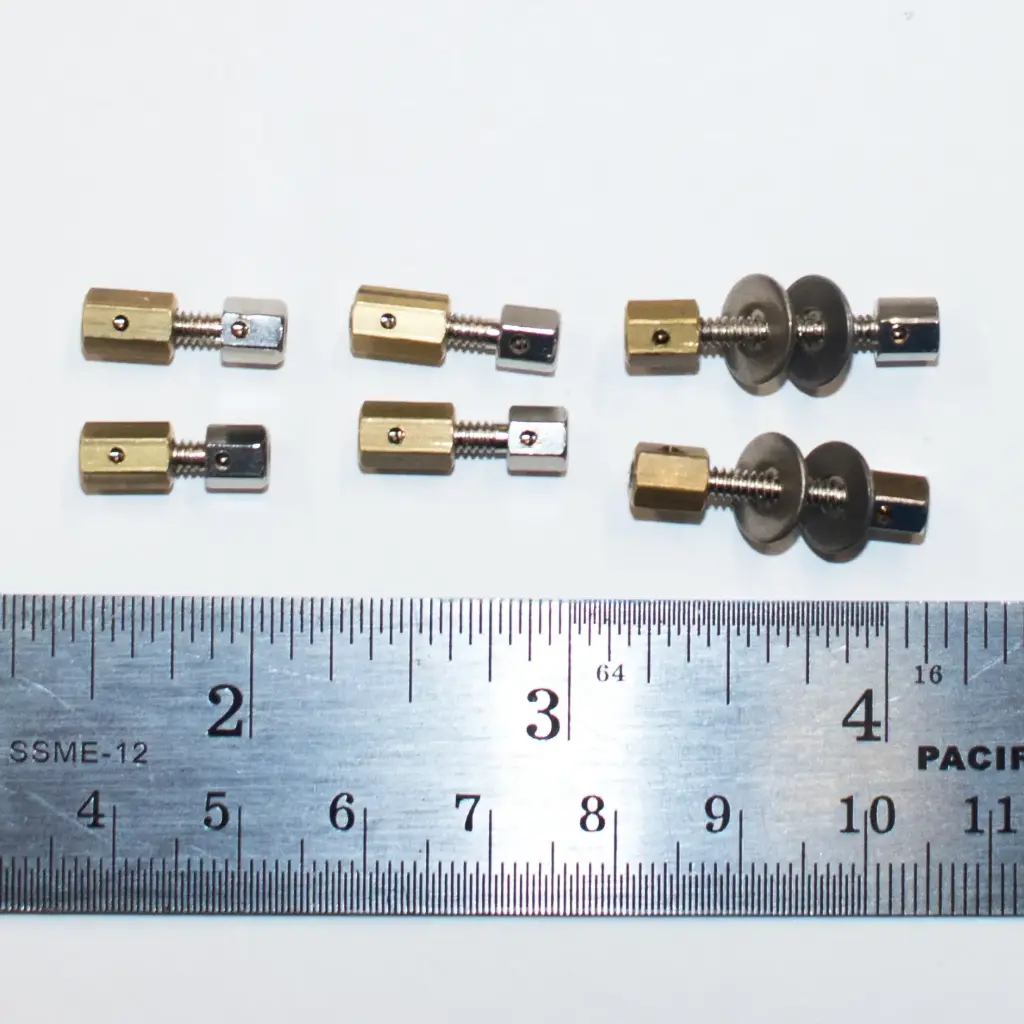

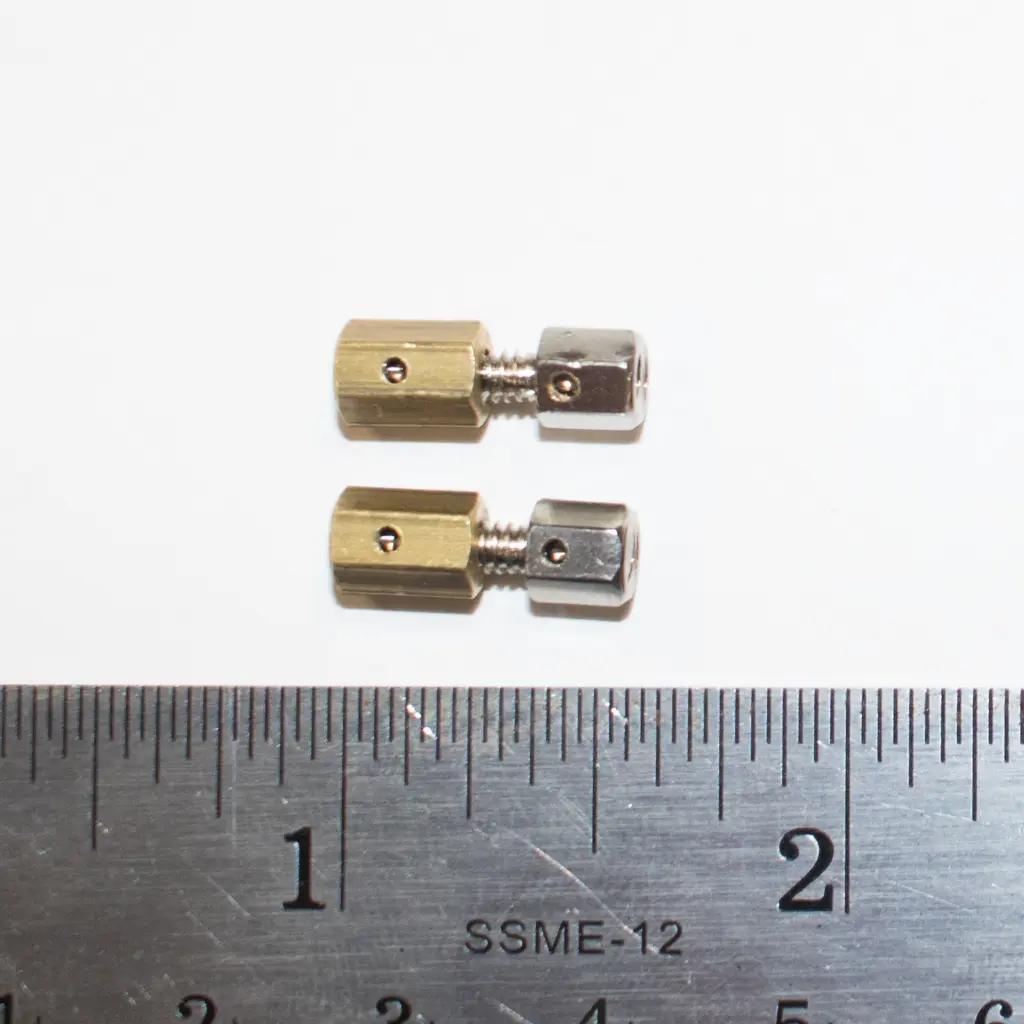

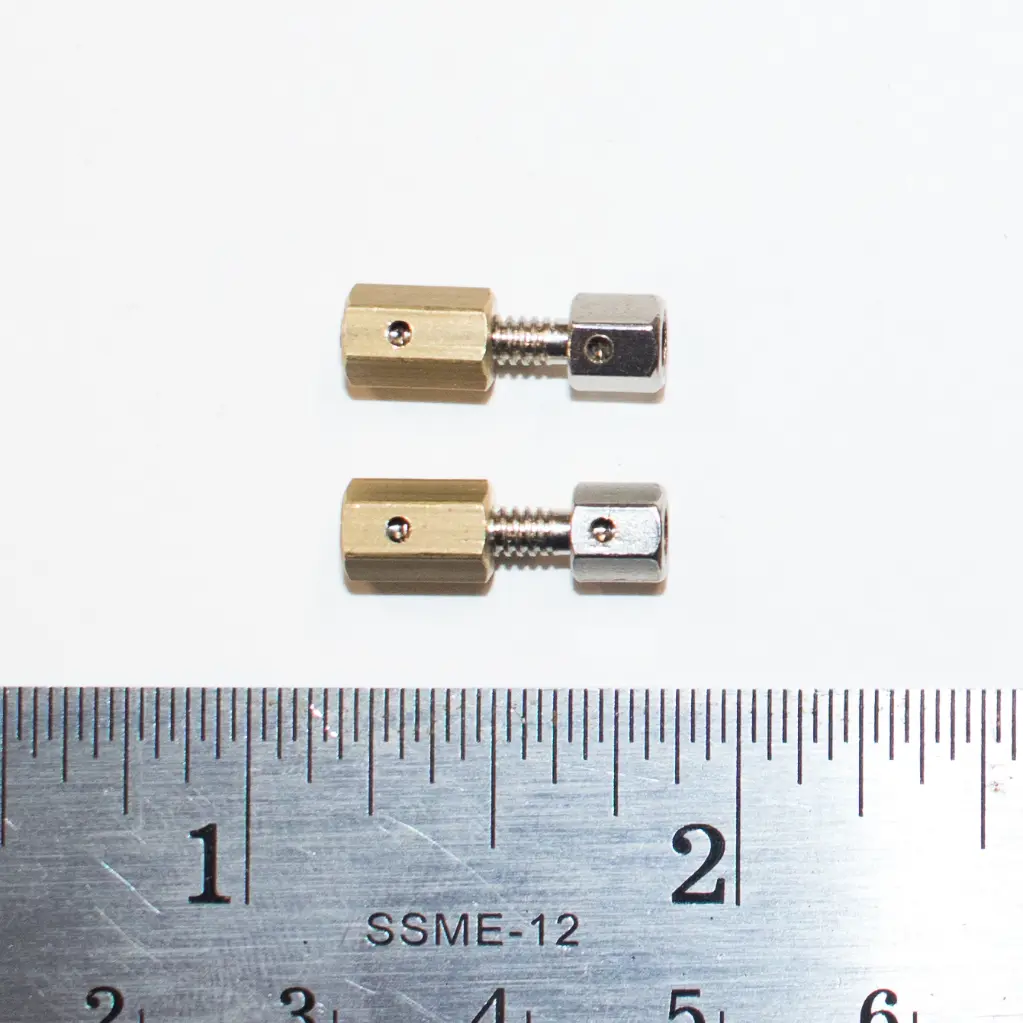

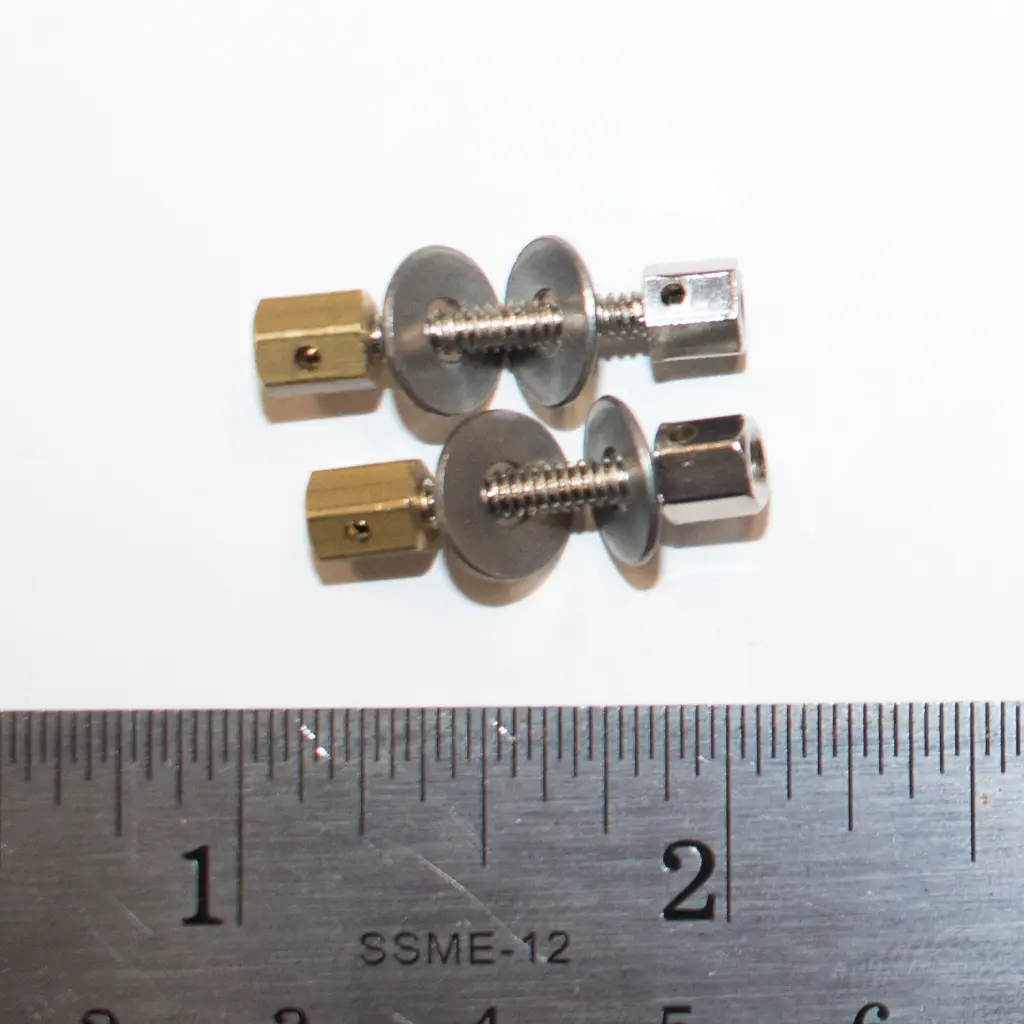

Currently available to fit 1/8", 3/16", 1/4" and 12 mm NON-CONDUCTIVE bulkheads. The 12 mm version is intended for use with plywood bulkheads, and includes two stainless steel washers. 1/4" Plywood connectors also includes two stainless steel washers.

The 12 mm version is verified for use with a double layer of LOC 1/4" (6 mm) plywood. Manufacturers have slightly different thicknesses of what they refer to as 1/4" and 1/2" plywood. If you are unsure which you have, then measure your bulkhead. If you have true 1/2" (12.7 mm) plywood we can help with that too as a custom order.

DO NOT OVERTIGHTEN. Damage due to overtightening is not covered under product guarantee.
