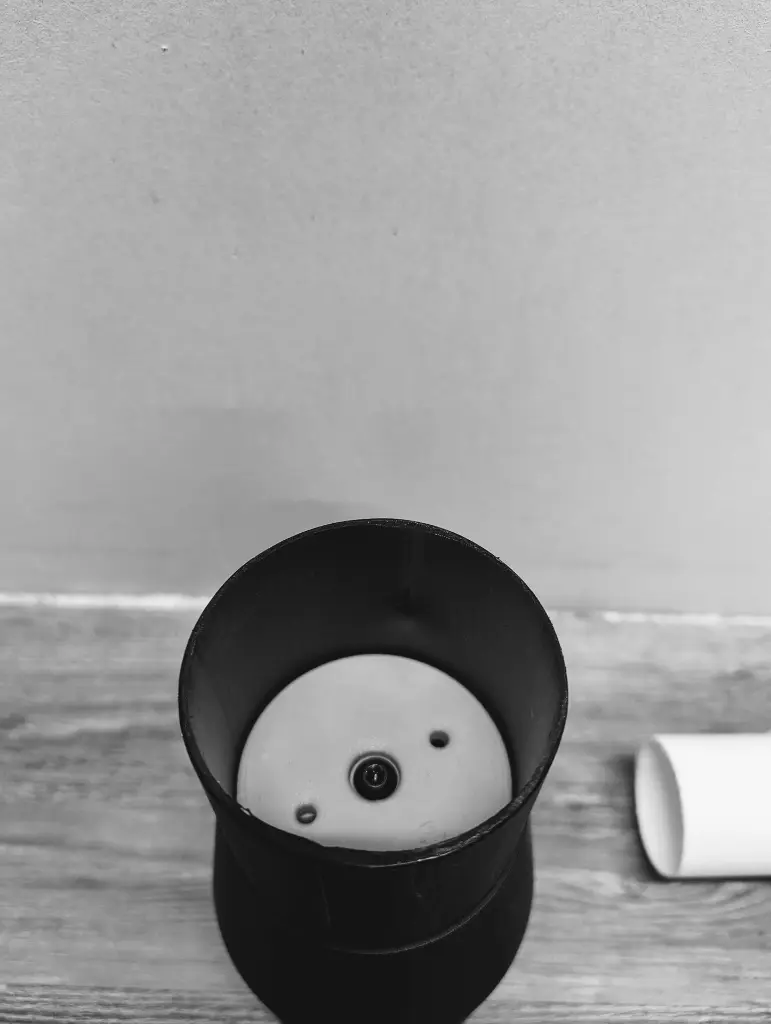

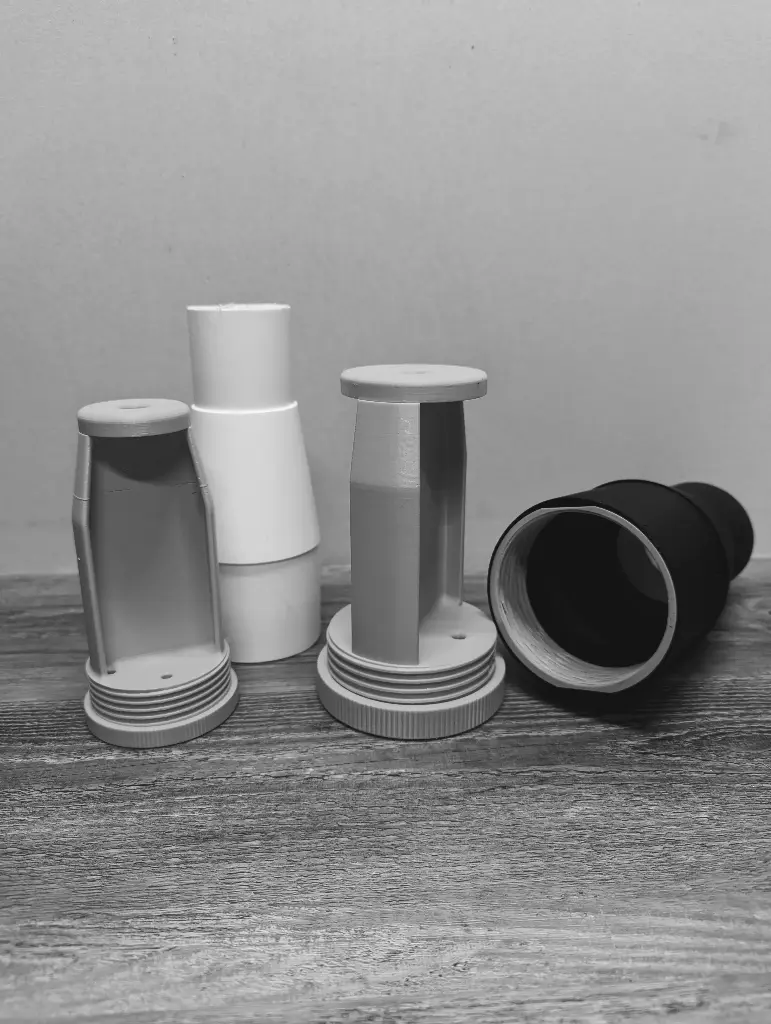

Designed to fit LOC plastic Transitions
They can be glued in or screwed in.
In order to screw it in you will need to source 2-56 screws and drill the required holes (typ 1/16in)
Glueing in is as simple as it sounds, add a little epoxy to the nose cone and slide it in. Be sure not to get epoxy on the threads.
Sled base and top have 2 pass through holes to run wires from boards into the tube
Sled base has location for 1/4-20 nut to slide in and a 1/4-20 Eye-bolt to be run through for shock cord mounting.
Sleeve Diameters
3in: 2.86in
4in: 3.7in
Includes:
1 - Threaded Sleeve (Note this does have a top and a bottom, it only threads in one way)

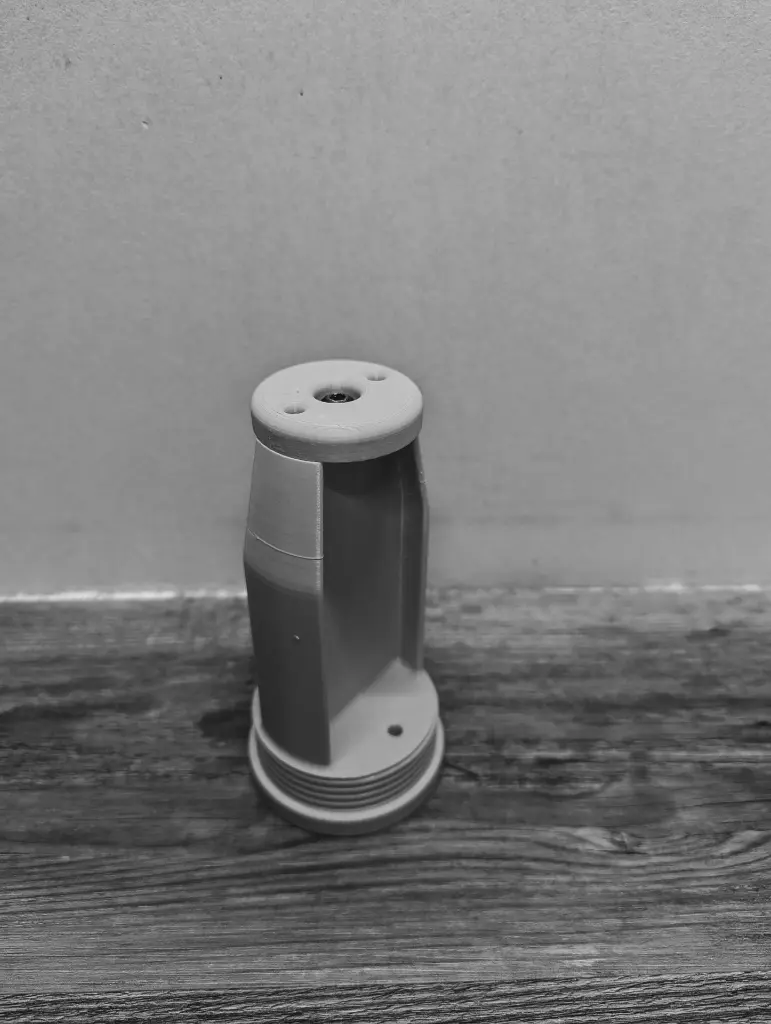

1 - Threaded Electronics Carrier/Bulkhead
1 - Top Plate
1 - 1/4-20 x 3/8 Bolt
Still Needed
1 - 1/4-20 Eye Bolt
1 - 1/4-20 Nut
