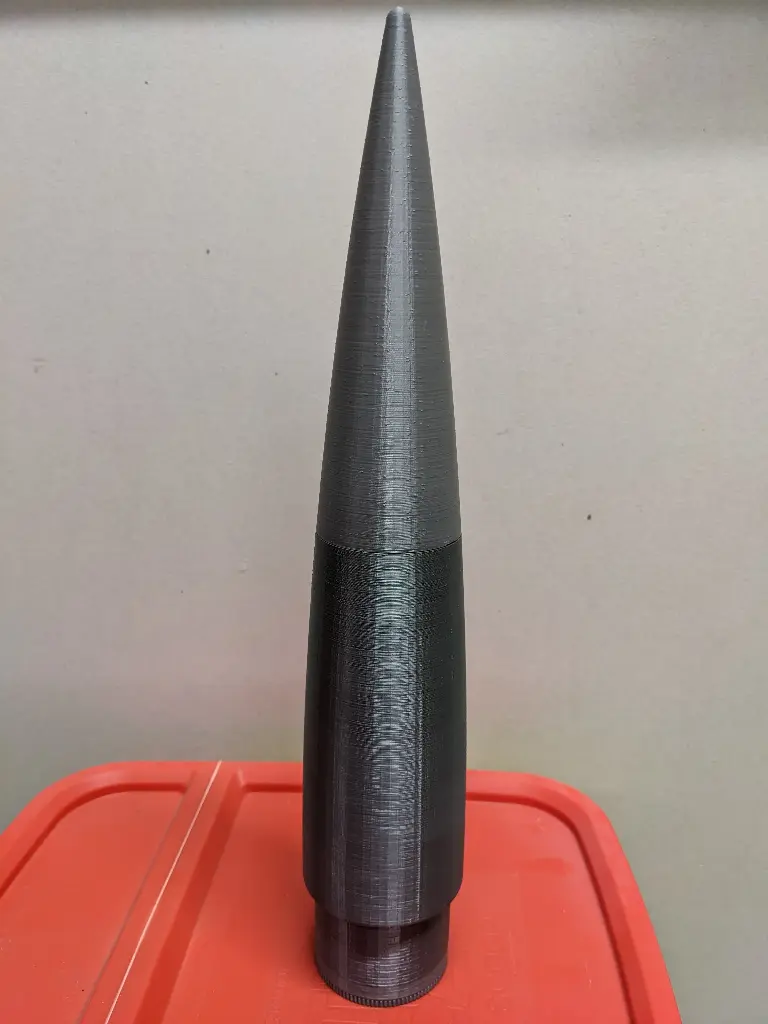

54mm 6:1 Ogive Nose Cone designed to interfaced with 54mm body tubes.

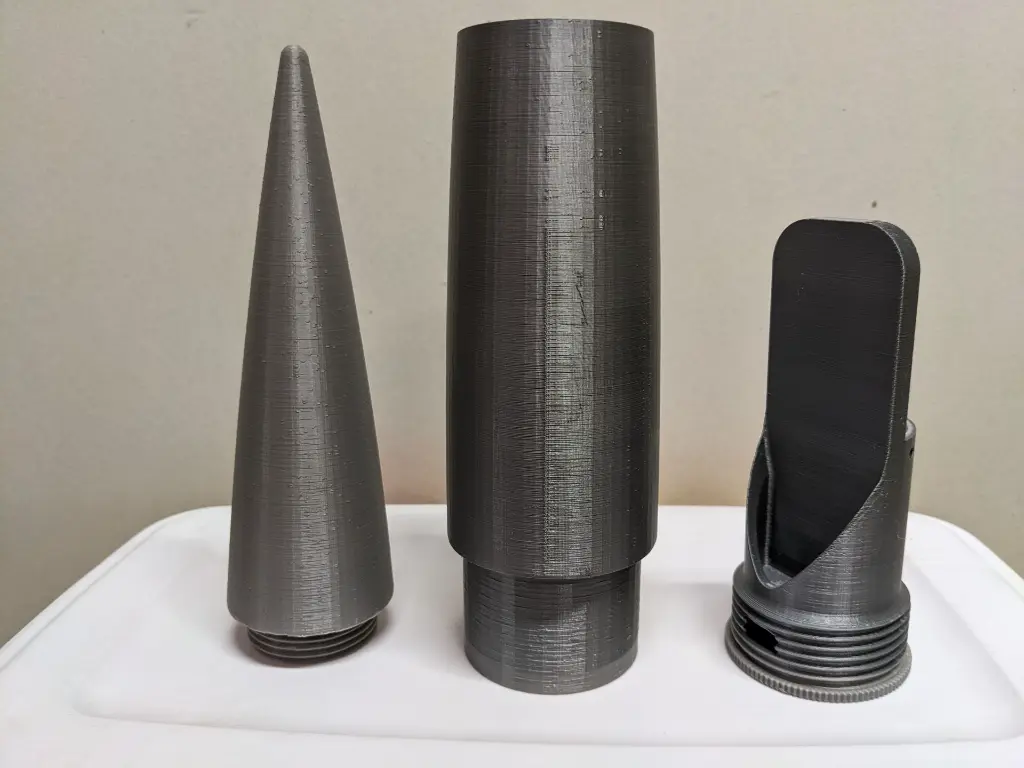

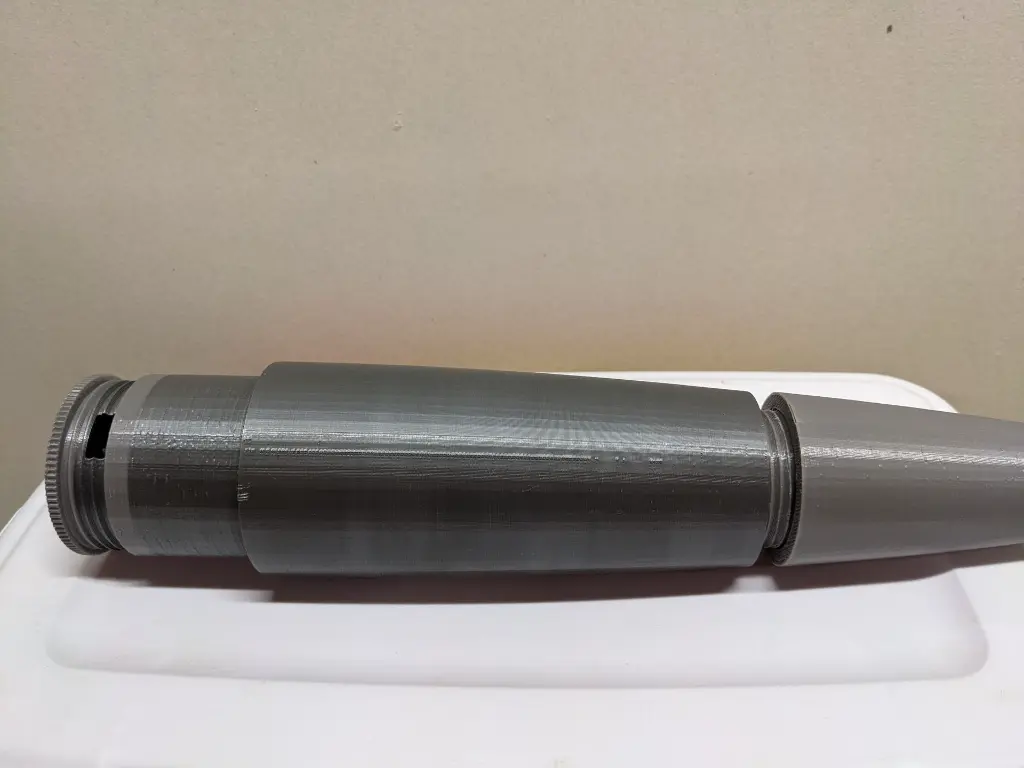

Kit includes 3 pieces that screw together (Hardware not included with kit)
- Nose Cone Tip
- Nose Cone Base
- Retention/Electronics Sled
Comes in Grey
The Sled can handle trackers or Dual Deploy Electronis.
Max Board Length x Width: 4in x 1.7in
Sled base has 2 pass through holes to run wires from boards into the tube
Sled base has location for 1/4-20 nut to slide in and a 1/4-20 Eye-bolt to be run through for shock cord mounting.
The Back of the sled is designed to accomodate a 1S Lipo. I use Zipties for retention and celulose insulation for padding.
Nose cone tip has 3/16 hole to allow for 1/4-20 bolt with washer stacks to weight nose cone further.
